United Abrasives Flap Disc 101

In this guide, we'll cover flap disc basics, including backing shapes, backing materials, and flap density. We'll also compare flap discs with grinding wheels and fiber discs to help you choose the best abrasive for your metalworking application.

What Is a Flap Disc?

Flap discs were developed as an alternative to resin-bonded grinding wheels and fiber discs. Advances in welding processes, such as MIG and TIG welding, have reduced weld size, making flap discs an ideal solution for removing welds while blending and finishing surfaces in fewer steps.

• Constructed from overlapping coated abrasive flaps that continually expose fresh abrasive grain as they wear.
• Combine grinding, blending, and finishing into a single operation, improving productivity and reducing labor costs.
• Operate more smoothly and quietly than traditional grinding wheels.

Flap Disc Backing Shapes

Flap discs are available in two primary backing shapes.

Type 29 (Conical)

• Designed with a built-in angle for aggressive stock removal.
• Provides increased contact area during grinding.
• Ideal for edge grinding and contoured surfaces.
• Helps minimize gouging.
• Recommended working angle: 15°–25°.

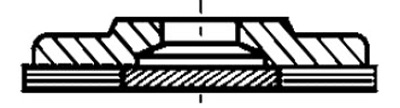

Type 27 (Flat)

• Best for flat surfaces, miter joints, corners, and edges.
• Excellent for blending and finishing intricate workpieces.
• Produces a smooth, consistent finish.
• Recommended working angle: 0°–15°.

Flap Disc Backing Materials

The backing material supports the abrasive flaps and influences durability, flexibility, and overall grinding performance.

• Polyester: Withstands extremely high grinding pressure, making it ideal for aggressive stock removal and edge grinding.
• Cotton: Offers maximum flexibility and conformability. Best used under lighter pressure for blending and finishing.
• Polyester/Cotton Blend: Combines the durability of polyester with the flexibility of cotton, making it an excellent general-purpose choice.
• United Abrasives Fiberglass Backing: Engineered for superior strength, durability, and safety. The higher fiberglass content provides increased rigidity and longer service life.
• United Abrasives Plastic Backing: Resistant to chemicals, solvents, and extreme temperatures while preventing scratching.
• Soft ABS Plastic Backing: Can be trimmed as the disc wears to expose additional abrasive material.
• Hard Plastic Backing: Provides maximum rigidity and long service life for demanding applications.

Flap Disc Density

Flap disc density refers to the amount of abrasive material layered onto the disc.

Regular (Standard) Density: Best for aggressive stock removal and general-purpose industrial grinding.

High Density: Contains approximately 40% more abrasive material than standard density discs, providing longer life and improved performance on curved or uneven surfaces. High-density flap discs excel at blending and finishing operations.

The United Abrasives Flap Disc Difference

Advanced Adhesive System: Specially formulated adhesives securely bond each abrasive flap to maximize performance and safety.

Premium Coated Abrasives: United Abrasives manufactures coated abrasive material specifically engineered for flap disc applications.

Optimized Flap Design: More abrasive flaps and larger flap sizes provide longer life and improved grinding performance compared to many competing products.

Abrasive Grain Options: The abrasive grain determines cutting speed, service life, and overall performance.

• Ceramic: Ideal for grinding steel, stainless steel, and aluminum. Ceramic grain runs cooler, minimizes discoloration, and provides maximum life.
• Zirconium: An economical choice for general-purpose steel grinding, stock removal, and finishing.

Flap Disc Comparison

The best abrasive depends on your material, application, and desired finish. Here's how flap discs compare to other common abrasive products.

Flap Discs vs. Grinding Wheels

• Faster stock removal with improved surface finish.
• Lower vibration and quieter operation, reducing operator fatigue.
• Cooler cutting with less loading and glazing.
• Easier to control, reducing the likelihood of gouging and rework.

Flap Discs vs. Fiber Discs

• Up to 20 times longer service life.
• No backing pad required.
• Resist curling during storage.
• Produce a more consistent surface finish.

---

Need Help Choosing the Right Flap Disc?

Contact the A&M Industrial Metalworking Team or download the United Abrasives Technical Information & Safety Guide for detailed selection charts, specifications, and technical data covering flap discs, grinding wheels, cut-off wheels, and other abrasive products.
